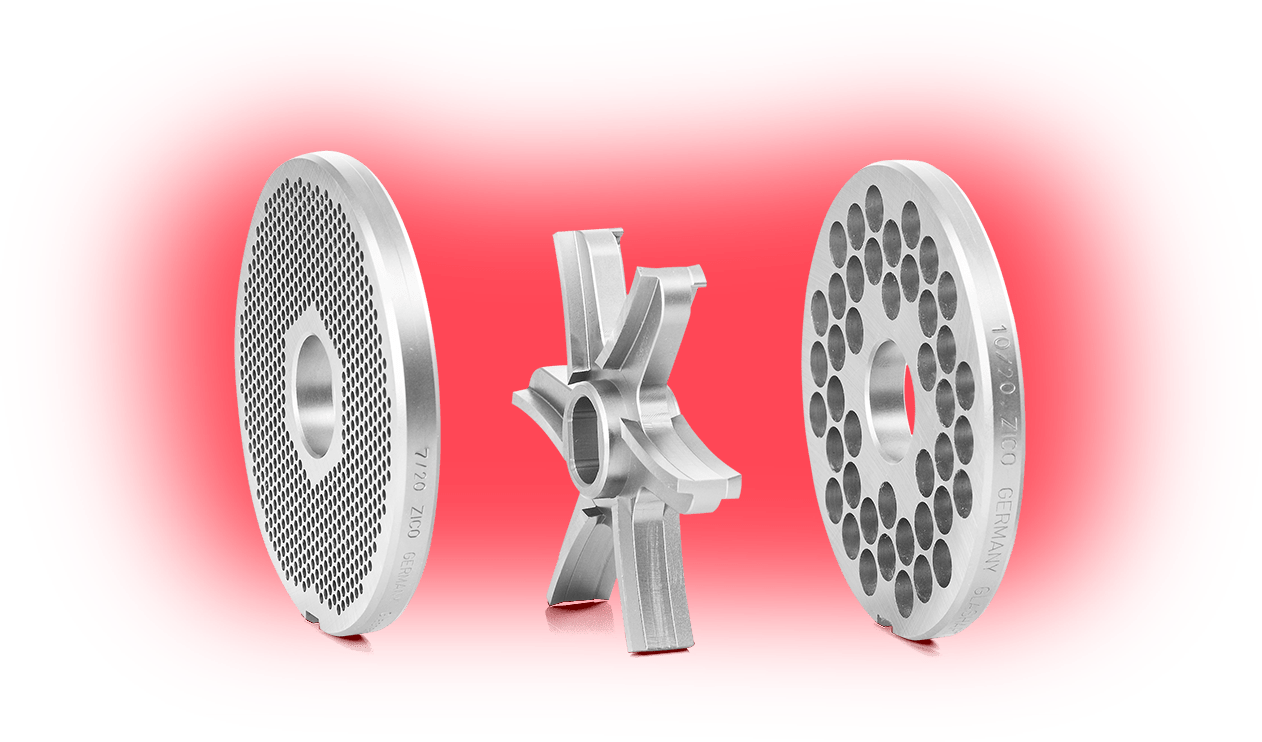

Mincer plates and knives for meat mincer
System Unger
System Unger
with bush
System Unger: with bush
Knives with bush, plates with adequate large center hole.
When placing orders please prescribe “with bush”. Most wanted plates are available in thick (30 mm) version! Garant 3 knives now available from R 70 – WK 250. Coded plates with one additional groove are optainable at surcharge.
Further sizes please inquire.
| Signification | R70 | HKO | A | B | C | D | E | J/F | G | FW | U | WK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plate diameter a mm | 70 | 82 | 90 | 98 | 106 | 114 | 130 | 150 | 160 | 200 | 200 | 250 |
| Plate diameter b mm | 17 | 22 | 24 | 26 | 28 | 29 | 32 | 36/38 | 42/38 | 44 | 52 | 62 |
System Unger
with bush – Inox
System Unger: with bush – Inox
Unger System with bush in stainless version INOX, inserts for insert-knives available.
Coded plates with one additional groove are available optainable at surcharge.
For further sizes and prices please inquire.
| Signification | R70 | H | B | C | C | E | G | U |
|---|---|---|---|---|---|---|---|---|
| Plate diameter a mm | 70 | 82 | 98 | 106 | 114 | 130 | 160 | 200 |
| Plate diameter b mm | 17 | 22 | 26 | 28 | 29 | 32 | 42 | 52 |
System Unger
with bush – Staysharp – D2
System Unger: with bush – Staysharp – D2
The clever alternative, extremely durable, good cutting result. Knives and plates made from D2-steel.
Coded plates with one additional groove are optainable at surcharge.
For further sizes and prices please inquire.
| Signification | D | E | G | U |
|---|---|---|---|---|
| DPlate diameter a mm | 114 | 130 | 160 | 200 |
| Plate diameter b mm | 29 | 32 | 42 | 52 |
System Unger
without bush
System Unger: without bush
The clever alternative, extremely durable, good cutting result.
Knives and plates made from D2-steel. Coded plates with one additional groove are optainable at surcharge.
Further sizes please inquire.
| Bezeichnung | B | C | D | E | G | SO |
|---|---|---|---|---|---|---|
| Durchmesser Lochscheiben a in mm | 98 | 106 | 114 | 130 | 160 | 70 |
| Durchmesser Mittelloch b mm | 19 | 20 | 21 | 23 | 32 | 12 |
System Enterprise
System Enterprise
with hub
System Enterprise: with hub
Knives and plates with hub
Coded plates with one additional groove are available at surcharge.
Further sizes please inquire.
| Signification |  Nr. 12 | Nr. 22 |  Nr. 32 | Nr. 52 | Nr. 56 | Nr. 66 |
|---|---|---|---|---|---|---|
| Diameter of plates mm | 70 | 83 | 100 | 130 | 152 | 219 |
| Diameter of center hole mm | 10 | 11,5 | 13,5 | 19,4 | 19,4 | 32,1 |
| Dimensions of square hole ca. mm | 11,7 | 13,2 | 15,1 | 21,7 | 21,7 | 40 |
System Enterprise
without hub
System Enterprise: without hub
Knives and plates without hub (plain)
Coded plates with one additional groove are optainable at surcharge.
Further sizes please inquire.
| Signification | Nr. 5 | Nr. 7 | Nr. 8 | Nr. 10 | Nr. 20 | Nr. 32 | Nr. 52 | Nr. 56 |
|---|---|---|---|---|---|---|---|---|
| Diameter of plates mm | 53 | 58 | 62 | 70 | 83 | 100 | 130 | 152 |
| Diameter of center hole mm | 8,25 | 8,25 | 9,5 | 10 | 11,5 | 13,5 | 19,4 | 19,4 |
| Dimensions of square hole ca. mm | 8,8 | 9,2 | 10,4 | 11,7 | 13,2 | 15,1 | 21,1 | 21,6 |
System Enterprise
Eversharp INOX
System Enterprise: Eversharp – Inox
The stainless steel cutting set from No.12 -No.32 – INOX
Coded plates with one additional groove are optainable at surcharge. The price for 2-wgd. knives is twice the 4-wgd. one. Plates only with hub available.
No.10/12 and further sizes please inquire.
| Size Nr. | 20/22 3/E | 32/41 4/E |
|---|---|---|
| Diameter of plates mm | 83 | 100 |
| Diameter of center hole mm | 11,5 | 13,5 |
| Dimensions of square hole ca. mm | 13,2 | 15,1 |
System Enterprise
Staysharp D2
System Enterprise: Staysharp – D2
The smart alternative, extremely durable. Plate with hubmade from D2, knives with hard edge knives, No.22 – No. 56.
Coded plates with one additional groove are optainable at surcharge.
No.10 and further sizes please inquire.
| Signification | Nr. 20 | Nr. 32 | Nr. 32 | Nr. 52 | Nr. 56 |
|---|---|---|---|---|---|
| Diameter of plates mm | 83 | 100 | 100 | 130 | 152 |
| Diameter of center hole mm | 11,5 | 13,5 | 13,5 | 19,4 | 19,4 |
| Dimensions of square hole ca. mm | 12,0 | 13,5 | 15,0 | 18,0 | 19,0 |
Emulsifier Plates
Emulsifier plates
Durchlaufscheiben
Made from best tool steel or stainless.
Plates with Diameter of 150, 175, 200, 225 and 248 mm, Drillings from 0,7 to 13 mm. Inserts with screws 3 pieces each.
Further sizes please inquire.
